Throttle-Controller Service Command Beauty Refit Electric-Drive Pedalbooster Car

    Throttle-Controller Service Command Beauty Refit Electric-Drive Pedalbooster Car Specification & Description Summary

    Throttle-Controller Service Command Beauty Refit Electric-Drive Pedalbooster Car Specification

    • Brand NameCRL
    • Materialabs
    • Model Numberall
    • Fitted carfor all electronic cars

    Note: Please note your car model and manufacturered year when placing the order! We will send matching Strong Booster model to you.Tks!

    2020 Car electronic throttle controller for modify tune grooming maintain refit beauty service center Auto gas pedal booster

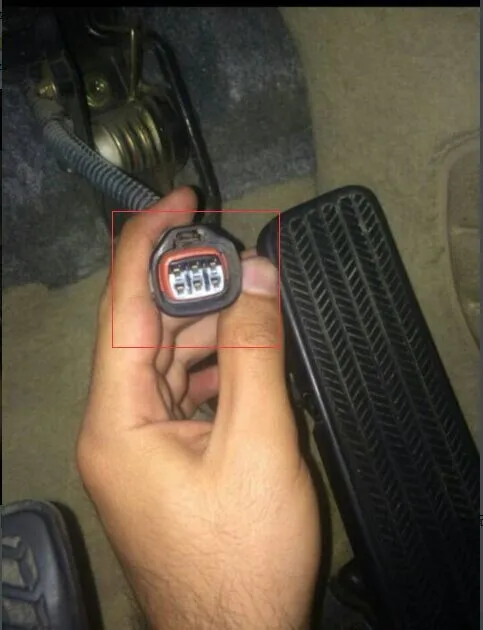

    Considering the different countries have different pedal models .If you could take the photo of your car pedal such as following pic, pls leave me a message of your car pedal pic.I could ensure the model  accurately.Tks

    pedal pic

    I. Product Main Features

    1, Shorten the response speed of the electronic throttle

    2, Improve the electronic throttle's sensitivity

    3, Plug and play without external power supply

    4, 9modes/0-10 degrees adjustable

    5. It can get inio the original car mode while revsersing for optional

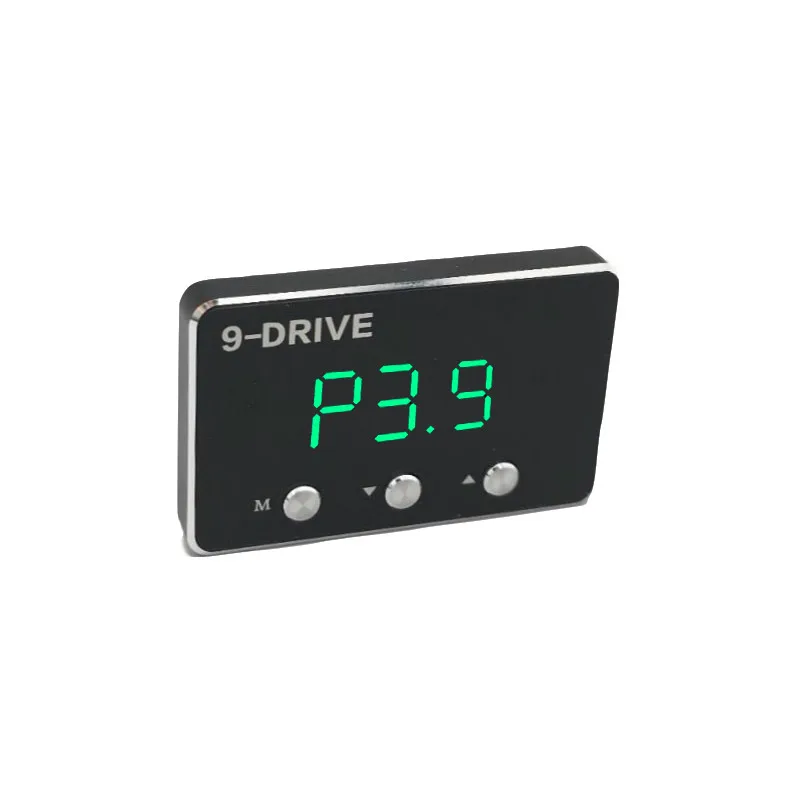

    6. Super bright  digital display screen, blue / red for optional,the display has black,silver and golden color to choose.pls leave me a message abou whats color do you want.Tks

    2

    9Dmoshi_r1_c19Dmoshi_r2_c1fuben9Dmoshi_r3_c1_Y9Dmoshi_r4_c1 Y9Dmoshi_r5_c1_Yfuben9Dmoshi_r6_c1_Y9Dmoshi_r7_c1_Y9Dmoshi_r8_c1_Y9Dmoshi_r9_c1_Y9Dmoshi_r10_c19Dmoshi_r11_c1

    9D_r1_c1

    9D_r4_c19D_r3_c19D_r2_c19D_r8_c19D_r7_c19D_r6_c1

    9D_r5_c1





    Installation steps

    1  Find the original electronic throttle pedal of your car

    2  When automobile is stalled and start key is off, unplug the car throttle pedal port

    3  Insert our throttle controller port into throttle pedal port, and check to see whether it gets stuck in position

    4 Connect the display screen with throttle controller host, then fix display screen with self-attached glue to the position under meterboard.finished



    9D_r14_c1

    instruction

    Thank you for purchasing our product. In order to make the product performance better, please read the following instruction  carefully.

    90

    Part 1:Function And Specification
    1.The product can improve the car handling ability by control the sensitivity of car throttle controller switch,and make it better adapt to different driving habit and road conditions.
    2.there are 9 Modes as below:
    P1-Mode AUTO
    P2-Mode AUTO
    P3-Mode AUTO
    P1-Mode Manual
    P2-Mode Manual
    P3-Mode Manual
    NOR-Normal Mode
    EC-Fuel-efficient Mode AUTO
    EC-Fuel-efficient Mode Manual

    3. There are 9 levels ( 1-9) for the acceleration, the acceleration sense from weak to strong is very obvious, and no effect the throttle control capability.
    Please note: The factory default setting mode is P2.6

    Part 2:Installation Instruction

    1.Connect the Throttle Controller with the accelerator Pedal interface
    2.Stick the Throttle Controller on central console
    3.Connect the plug with the Throttle Controller,bind the wire if necessary.

                                       Installation Diagram

    91

    Step1:

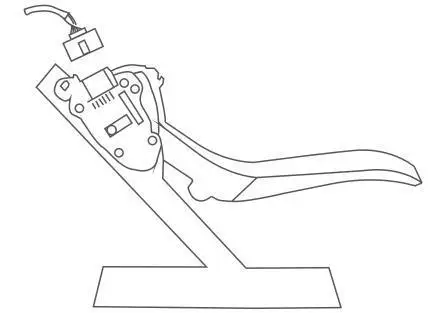

    Pull away the interface of the accelerator pedal.Please refer to picture 1
    92



    Step2:
    Connect the throttle controller cable plug with accelerator pedal interface .Please refer to picture 2
    93


    Step3:

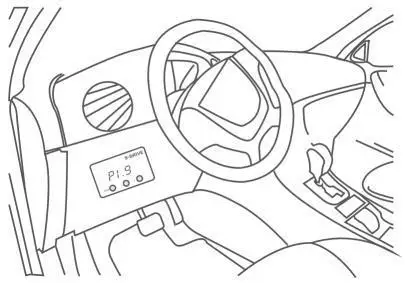

    Tear the protection paper on the back of Throttle Controller, and stick it on the central console
    94
    Part 3: Safety Cautions
    a.Before the installation, user need to check the Electronic Throttle Controller plug and accelerator pedal interface, they should be connect properly.
    b.After finish installation, please start engine under the Neutral Gear or P Gear,and check the accelerator pedal is work.
    c.If install the wrong direction, it will cause the accelerator pedal invalid and the warning light of engine will be on. If in this situation, please don't worry, this products has the internal protection circuit, which will prevent harms to the vehicle parts. Please turn off the engine and disassemble this product.After 2 minutes, install this product in the correct way,then it can work.
    Part 4:Operation
    a.This product can be operated by the three keys ,from left to right, the buttons are Mode, -, +
    b.This product can be adjust with power at any time,but when adjusting the product, please pay attention to safety.
    c.Press the mode button, it will show: P1- Mode,P2- Mode,
    P3- Mode,NOR-Normal Mode,EC-Fuel-efficient Mode
    d.the two button can adjust the level of the mode from weak to strong, there are 9 levels (1-9),Please note: except the Nor-Original Mode,all of above modes have 9 levels adjustment function.

    Detail for 9 mode:

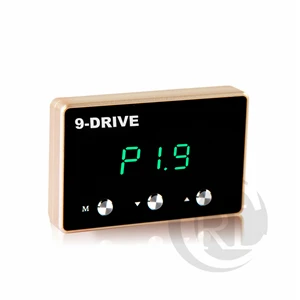

    P1  Mode:
    Increase the throttle response speed ,start become fast response and accelerate be smooth,1-9 level to adjust from weak to strong,(P1.9) refer to comfortable mode and 9 level
    2_
    P2  Mode:
    Improve the instantaneous acceleration and turning abilities, to achieve the best speed rate,1-9 level to adjust from weak to strong,(P2.9) refer to Sport Mode and 9 level
    3
    P3 Mode:
    Achieve the Superior acceleration performance and make it feels like in the Racing-Field. 1-9 level to adjust from weak to strong,(P3.9) refer to Sport Mode and 9 level
      1_
    NOR Normal Mode:
    Back to the Normal control mode.
    5
    EC Fuel-efficient Mode:
    Achieve the best Fuel-efficient mode, about 3-8% fuel saving.
     4
    Automatic Mode:

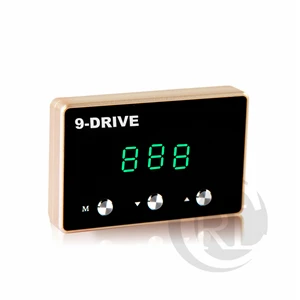

    Long press"+" for 3 seconds,screen will show 888,it means enter into automatic mode
    7
    Manual Mode:
    Long press "-" for 3 seconds,screen will show 999,it means enter into manual mode
    6

    IV. Working principle

    1. Electronic Throttle and Fly-by-wire Throttle
    Along with rapid development of auto industry, auto manufacturers in America,

    Germany, Japan and other countries successively adopted electronic throttle control

    system early in 1990s. Electronic throttle control system mainly consists of throttle

    pedal, pedal displacement sensor, ECU (electronic control unit), data bus wire, servo

    motor and choker executing mechanism. Electronic throttle is generally adopted in

    fairly new models. Electronic throttle is named in comparison with fly-by-wire throttle

    which features direct connection between throttle pedal and choker with thin steel

    wire. The treading depth of throttle pedal directly corresponds to the opening width

    of choker. Electronic throttle is free of wire. Treading depth of throttle will be converted

    into resistance value after a potentiometer (with variable resistance) is mounted in

    pedal. Electronic system of automobile indirectly determines the depth of pedal through

    sampling of resistance value. Finally, ECU will activate stepping motor to control the

    opening width of choker. It can be easily found through principle comparison that fly-

    by-wire throttle features simple system and direct control, with the proportion of the

    opening width of throttle and choker being 1:1. Characteristics of electronic throttle

    are as follows: throttle pedal only indicates driver’s operating intention, while the

    final right to control choker belongs to ECU.



    2. Characteristics of Electronic Throttle Control System and ECU(ECU)
    In models with electronic throttle control system, ECU will analyze the treading depth

    of throttle in combination with auto conditions when controlling electronic choker, and

    then calculate appropriate opening width of choker at the current time. When diver

    speeds up suddenly at the time of startup (tread the pedal to the utmost), ECU will

    perform analysis according to the current auto speed, opening width of choker and

    other factors, appropriately restrict the opening width of choker from the perspective

    of fuel saving and reasonable exhaust emission, and control fuel spray system to

    restrict maximum spray of fuel injection nozzle at the same time. In this way, driver

    will feel that automobile begins to start after throttle is treaded for a while, which is

    the so-called throttle lagging. Therefore, throttle lagging is actually the result of ECU

    operation through restricting instant output of engine, which can make automobile

    more environmental-friendly and energy-saving.



    3. Operating Principle of STRONG BOOSTER
    (1) Accelerating choker opening and improving static response
    “Acceleration” of STRONG BOOSTER is realized mainly through improving the responding

    sensitivity of choker. When ECU finds that driver has the intention for acceleration, it

    will activate rapid opening of choker via circuit signals to improve the responding

    sensitivity of throttle.
    (2) Speeding up throttle signals and improving dynamic response
    When accelerator treads on throttle pedal, STRONG BOOSTER will calculate the alteration

    rate of throttle signals according to treading depth and time. Alteration rate is in

    proportion to accelerating requirements. STRONG BOOSTER will enhance such alteration

    rate and finally realize maximum dynamic response of auto acceleration.
    (3) Providing false driving style for ECU’s adjustment of engine parameters
    ECU of modern engine generally has the capacity of self-adapting driving style. If

    driver often treads on throttle quickly to a considerable depth (also known as pulling

    speed), ECU will gradually consider that the driver’s style tends to be “violent”. In this

    way, engine will slowly adjust choker and fuel spray system, etc. to obtain optimal

    adjusting parameters of engine under this style. After STRONG BOOSTER is used for a

    long time, even if the driver drives the car with previous “mile” driving style, engine

    will still acquire experience of “violent” driving, which is equivalent to the adjustment

    of ECU parameters. At the long last, engine will automatically amend its parameters

    to adapt to such driving style.
