Stereo Microscope Video-Camera Trinocular Simul-Focal Soldering-Repair HDMI 37MP 1080P

    Stereo Microscope Video-Camera Trinocular Simul-Focal Soldering-Repair HDMI 37MP 1080P Specification & Description Summary

    Stereo Microscope Video-Camera Trinocular Simul-Focal Soldering-Repair HDMI 37MP 1080P Specification

    • Brand NameEakins
    • Magnification Ratio500X & Under
    • Model Number7-45X
    • MaterialMetal

    wy-plugin-start

    Hot Commodity

    Trinocular Stereo Microscope 7X-45X Continuous Zoom Magnification+14MP HDMI USB Microscope Video Camera for Repair iPhone PCB

    $332.99

    16MP 1080P HDMI USB Camera Trinocular Stereo Continues Zoom 7-45X Microscope for Fix Repair iPhone PCB Electronic Tools

    $356.99

    Full HD 16MP 1080P HDMI USB Video Camera Trinocular Stereo Microscope 7X-45X Continuous Zoom Magnification For Repair iPhone

    $369.99

    Trinocular Stereo Microscope Continuous Zoom 7X-45X+VGA USB AV TV Digital Industrial Video Microscope Camera +144 led Light

    $276.99

    7X-45X Trinocular Zoom Stereo Microscope 144 LED Light Measurement soft 1080P VGA HDMI Camera for Phone Repairing PCB Inspection

    $369.99

    7X-45X Trinocular Illuminated Zoom Stereo Microscope with LED Light 13MP 720P VGA HDMI Camera for Phone Repairing PCB Inspection

    $279.99

    Trinocular Stereo Microscope 3.5X-90X Continuous Zoom Magnification+14MP HDMI USB Video Camera+Big stand+0.5X/2X Objective Lens

    $386.99

    Trinocular Stereo Microscope 7X-90X Continuous Zoom Magnification+16MP 1080P HDMI USB Video Camera+144 LED Light+0.5x/2.0x Lens

    $399.99

    wy-plugin-end




    Features:

    7X to 45X Continuous Zoom Magnification Power
    45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
    Trinocular port for adding photo or video capability
    30mm Super Widefield WF10X Eyepieces with 20mm Field of View
    High Resolution with Great Flatness and Contrast
    Sharp Stereo Erect Images over a Wide Field View
    Crystal Clear Original True Color Images
    Large Working Distance
    Accurate Alignment Ensuring a Fatigue-Free Viewing
    Full Optical Glass Elements
    Precise Ground Glass Lens
    All Metal Mechanical Components
    Adjustable Interpupillary Distance
    Manufactured under ISO 9001 Quality Control Standard


    Specifications:

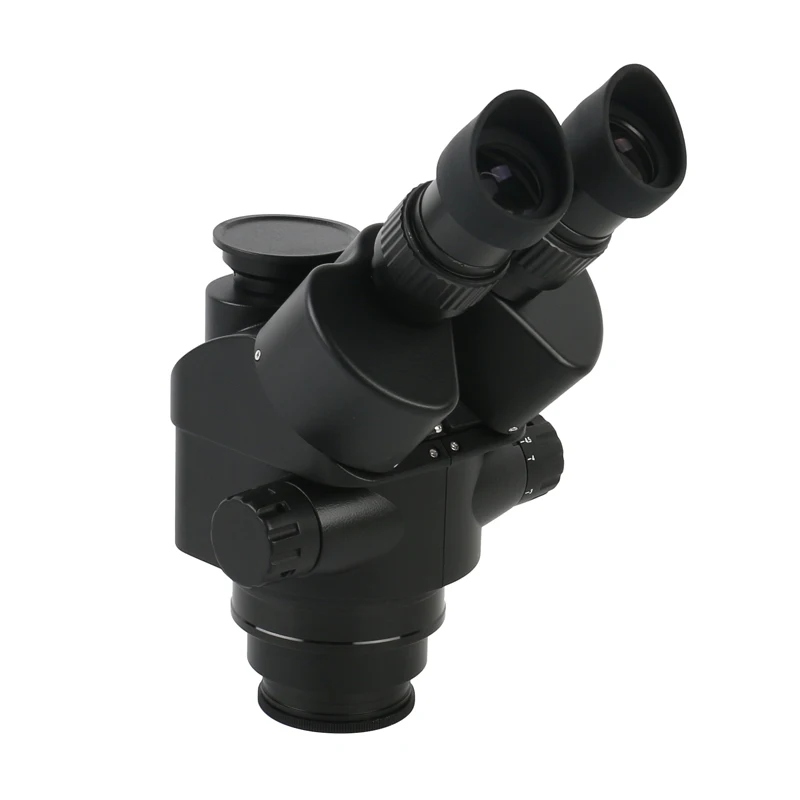

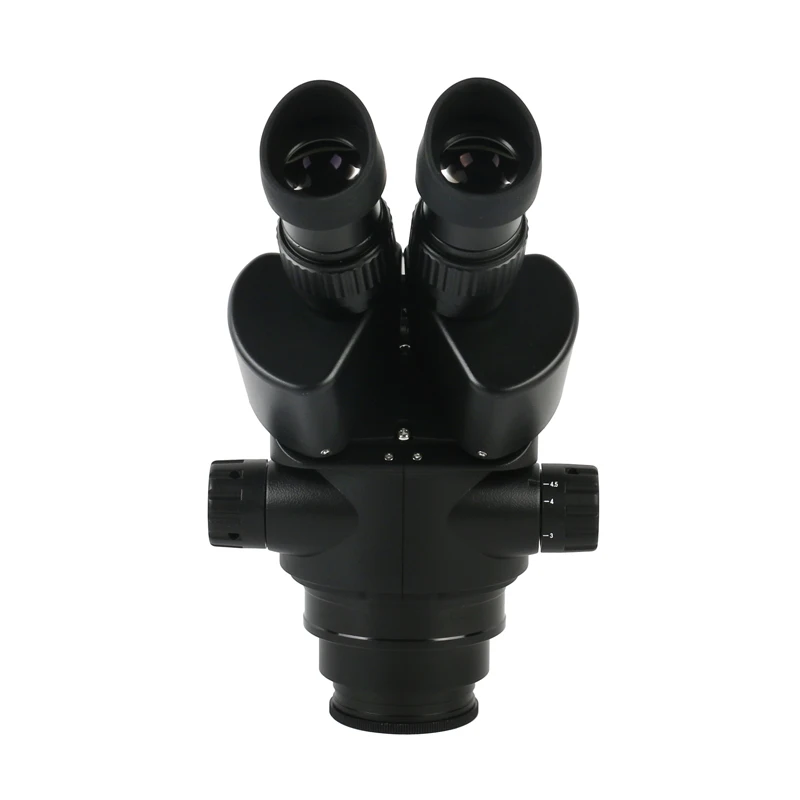

    Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
    Eyepiece: 30mm super widefield high-eyepoint WF10X/20
    Objective: 0.7-4.5X
    Zoom Range: 6.5:1
    Trinocular Port: 23mm photo port
    Interpupillary Distance: 2-1/8" to 3"(54-76mm)
    Field of View: 1-1/4" (33mm)
    Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
    Head Mounting Size: 3" (76mm) diameter
    Accessory Mounting Size: 1-7/8" (48mm female thread) diameter


    144 bright white LED bulbs
    100,000 hours of life
    Intense and focused shadow-free illumination
    The brightness of 0-100%Adjustable,high brightness
    Variable intensity control
    Power input: 100-240V, 50-60HZ
    Suit for the dia of the lens: 30mm-160mm


    Specification:
    Image sensor: Panasonic sensor
    Frame rate: 1920*[email protected]
    Housing: Aluminium alloy
    Pixel size:1.43μm × 1.43μm
    Output:USB, HDMI, TF card, infrared remote control
    Sensor size:1/2.3"
    Power:DC-12V/1A

    Features
    Basic function:Brightness, contrast, saturation, white balance,
    black and white switching, date adjustment
    Image adjustment:Exposure, Flicker restrain, Acutance,
    Gamma, Cb/ Crgain adjustment
    Camera function:Digital zoom, Horizontal/
    vertical mirror, image freeze
    Storage:Image capture,video, image preview, TF card formatting
    Reticle:4 sets of reticle, can define the
    color, line, displacement, and hidden
    Crosshair:Can adjust color, line size, hide or display
    White balance: Auto/manual
    TF card interface: Max 64G
    HDMI interface: Standard HDMI output
    HDMI Image resolution:  8168*6128 4:3(50MP) 8168*4592 16:9(37MP) (for TF Card),
    USB Image resolution: 1920 *1080 (for PC USB)
    Video resolution: 1920 *1080 @ 60FPS for HDMI, 1920 *1080 @ 30FPS 1280*[email protected] 30FPS 640*480 @ 30FPS 320*240 @ 30FPS  for USB
    Video format: MP4
    Image format:JPG
    Color: Color/black and white
    Freeze: Support
    Exposure:Auto/manual
    Camera Interface:C CS Mount
    EV:+/-
    Remote operation:Yes
    Language Support :Chinese English French  Spanish  Portuguese  German Italian Simplified Chinese Traditional Chinese Russian Japanese


    Package Including:

    1 x Trinocular Stereo Zoom Head(Working distance is about 10cm)
    1 x Pair of Super Widefield 10X20MM Eyepieces
    1 x Pair of Eye-Guards
    1 x Dust Cover
    1 x 144-LED Ring Light
    1 x Big Stand
    1 x 76mm Focusing Holder
    1 x High temperature resistant working pad
    1 x HDMI USB Video Camera
    1 x HDMI Cable
    1 x USB Cable
    1 x 8GB TF card
    1 x IR Remote control
    1 x Power Supply Adapter (EU/AU)

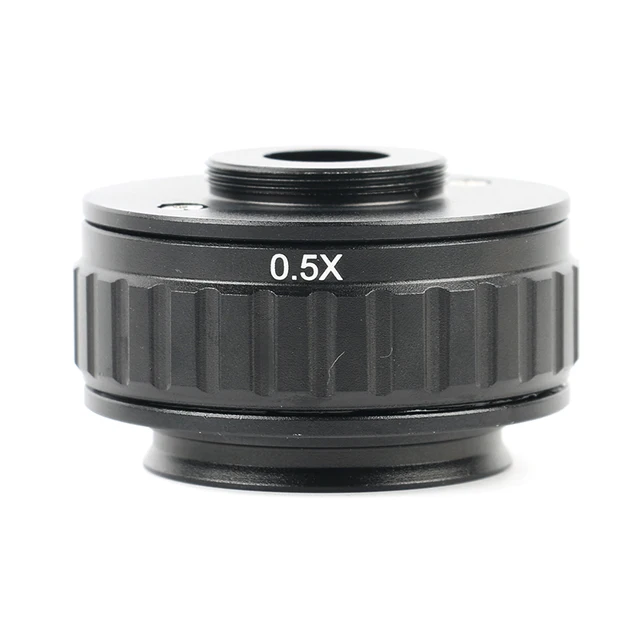

    1 x 0.5X C-mount Adapter
    (Optional)

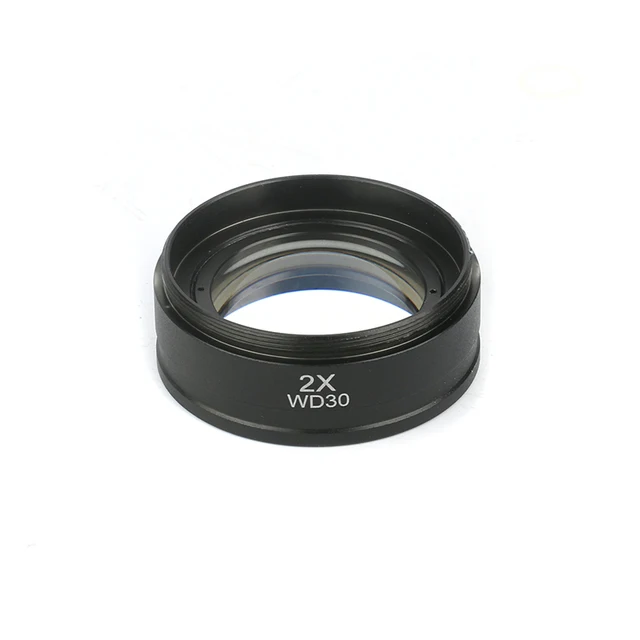

    1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
    1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
    1 x 1.0X Microscope Auxiliary Objective Lens(Protective Function Lens)
    1 x  Adjustable Metal Arm

    12


    151617
    3456
    8

    IMG_2967IMG_2968IMG_2972IMG_2977
    2X0.5X
    141 (2)2 (2)3 (3)4 (2)
    00112345678
    5678
