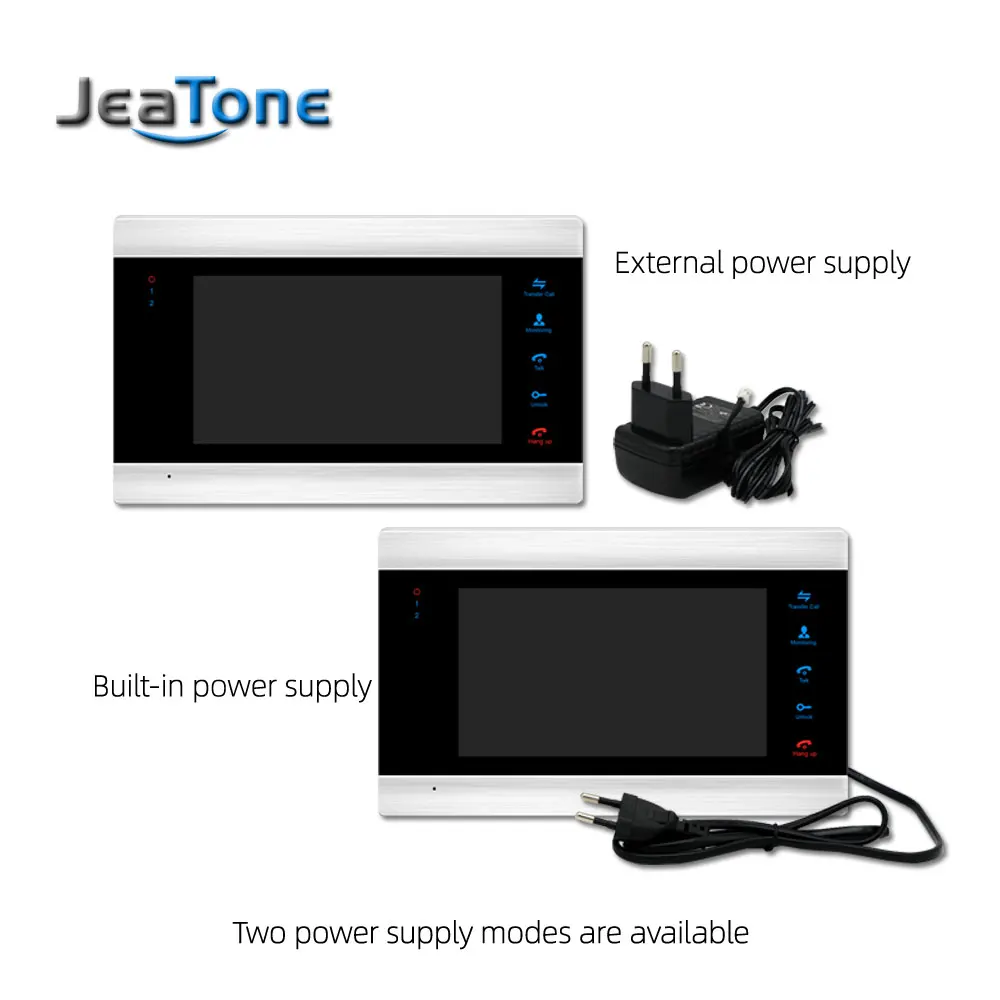

External power supply can ship from Russia.

Model:P201S1M706S1

External power supply with 16G SD card can ship from Russia.

Model:P201S1M706S1-16G



With JeaTone 7” Wired Video Door Phone System, Visitor Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.

Multi-languages OSD Menu

The System Supports Six Different  Languages: English, Russian, French, Arabic, Spanish, Japanese.

Clock & Date Mode

Touch Sensor Button,Acrylic Wire Drawing Panel

Indoor Monitor Is Made Of Acrylic Wire Drawing Panel And TFT Display ,Very Elegant Design ,It Adopts Advanced Touch Technology .With Sensitive Blue And Red Light.

1200TVL Resolution Camera, View More Clearly.

1200TVL High Resolution HD CMOS, See Sharper And More Details Than 800TVL/600TVL.



Support Electronic Lock, Analog Camera, PIR (All Not Included, if you need, contact us to buy)

Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera And Electronic Lock. It Can Protect Your Home And Property In All Aspects.

​Please Notes:

PIR Installation Separately Can Be For Alarm Prompt only, Work With Camera Together Can Alarm And Video Recording.

Dual-way Intercom, Call Transfer Among Monitors



Fashionable Appearance ♦1200TVL Camera ♦3pcs 940 Nanometer IR LEDs For Night Vision ♦Adjustable Intercom Volume ♦Dual-way Intercom ♦IR Sensor, Turn On/off IR LEDs Automatically ♦Easy To Install And DIY Installation ♦Rust-proof Aluminium Alloy Anti Vandal Panel ♦IP65 Weatherproof

Product Specs-Outdoor
Camera Sensor	1/3" CMOS, 1200TVL-Line High Resolution
Lens	3.7MM HD Pinhole Lens
Night Vision	IR Light, 3pcs IR LEDs
Electronic Lock	Support
Power Consumption	200mA Max.
Power Supply	Supplied From Indoor Monitor
Material	Aluminum Alloy panel
Waterproof	IP65
Operation Temp	-40°C +50°C
Installation	Surface Mounted

Excellent Performance ♦7"TFT Display, Acrylic Wire Drawing Panel ♦Touch Button,With Storage ♦Room to Room Intercom ♦Door Answering, Monitoring And Unlocking ♦Adjustable Color, Brightness and volume ♦Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card ♦12 Ringtone For Choice (new firmware with motion detection, but with 6 rongtone)

Product Specs-Monitor
Monitor & Resolution	7" TFT LCD, 800*480
Memory	Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card
Intercom Code	Hands-free Dual-way Communication
Delay Calling Time	120s
Keypad	Touch  Button
Power Input & Consumption	External Power DC 12V; Standby:3W; Working:5W
Material	Acrylic Wire Drawing Panel
Recording	Picture: Jpeg Format; Vide: Avi Format
Support	2 Call Panel +4 Indoor Monitor + 2 Analog Camera & 2 PIR
Operation Temp	-10°C +60°C
Installation	Surface Mounted

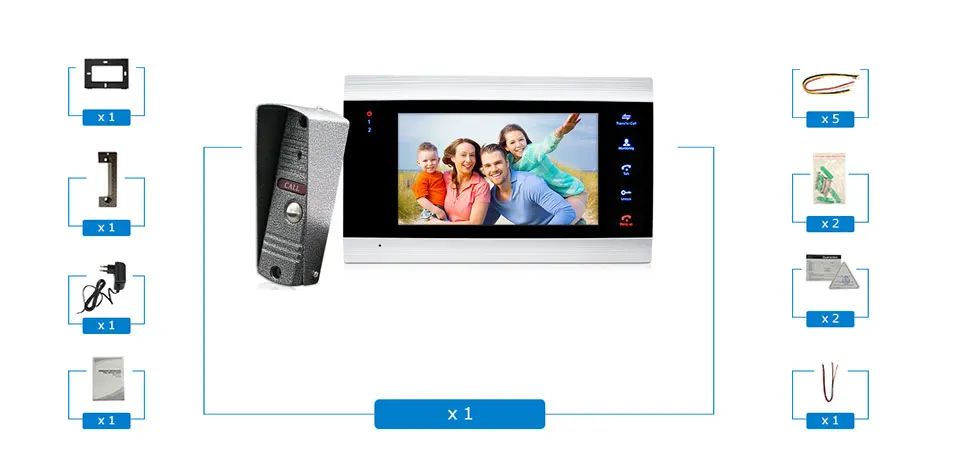

Package

1x Indoor Monitor 1x Monitor Mounting Plate 1x Power Adapter 5x 200mm 4 Pin Connerctor 2x Gurantee Card 2x English User Manual

1x Outdoor Call Panel 1x Call Panel Mounting Plate 1x 200mm 2 Pin Connector 2x Screw Bag 2x Qualified Certificate 1x Rain Cover

Please Notes：

  We Will Send Applicative Power Adapter To Your According To Your States

Installation Method



PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).



Connection Diagram



PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).

Villa Intercom System

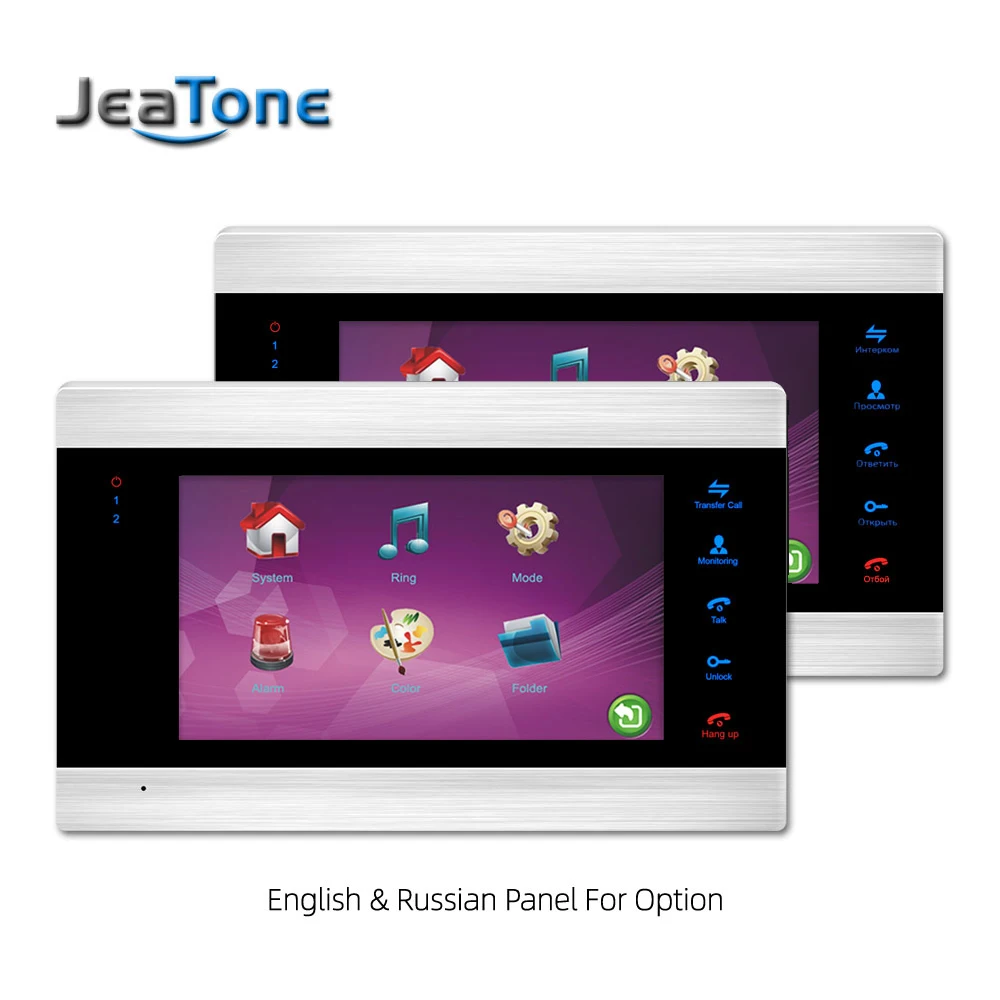

Two language panels are available

English and Russian panel for option, please leave messages tell us about your choince.
