Dragonsview Video-Intercom Access-Control-System Wired Call-Panel Door-Phone Electric-Lock

    Dragonsview Video-Intercom Access-Control-System Wired Call-Panel Door-Phone Electric-Lock Specification & Description Summary

    Dragonsview Video-Intercom Access-Control-System Wired Call-Panel Door-Phone Electric-Lock Specification

    • Brand NameDragonsView
    • Connection MethodWired
    • OriginCN(Origin)
    • Answering ModeHands-free

    Dragonsview Wired Video Intercom Access Control System

    1. 4 ways to open electric lock : monitor unlock / ID card unlock / keys unlock / remote control unlock (close range)2. monitoring outside without pressing call button3. 2 way talk, available talk to visitor4. monitor support 1 doorbell connected5. support 2 electric locks connected , lock 1 connect to monitor m lock connect to doorbell ,support unlock locks separately6. it support up to 4 monitors connect together7. doorbell has 1000TVL and 90 degree angle 8. monitor support unlock directly (need not unlock through doorbell )9. monitor has 7 ringtones10.this is a simlpe video intercom, does not support motion detect record,if you need multifunctional video intercoms , welcome to contact me

    Monitoring Outside without Pressing call button

    Support Remote Unlock

    How to choose ringtones

    1.press monitoring button and talk button at the same time2.press monitoring button again , to choose different ringtones

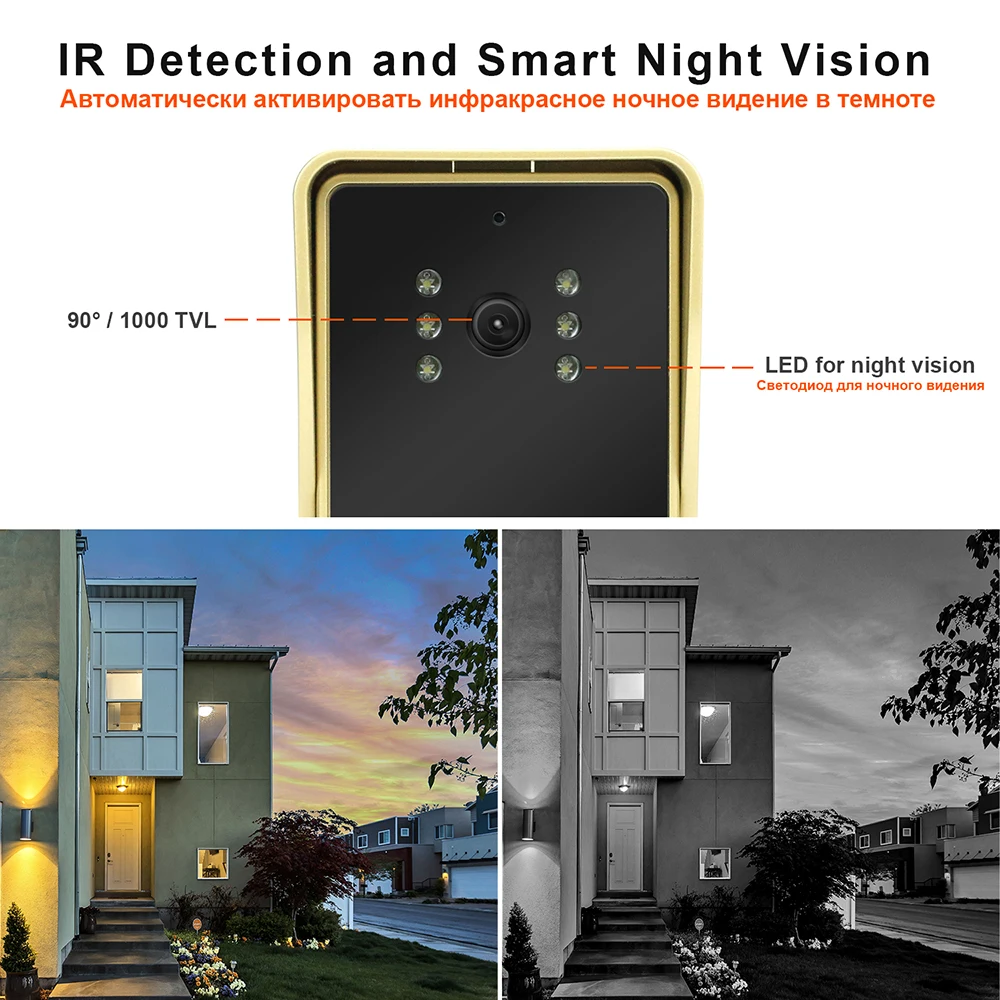

    90 Degree Angle / 1000TVL / Infrared Night Vision

    About Electric lock

    materials: metalMistakenly lock or unlock after no entry, the door automatically locked in around 8 secondsVoltage DC12V, current <350mA, unlock time 1SWorking temperature range -40℃--60℃

    How to activate ID cards

    1. swiping management card2.swiping ID cards3.swiping management card again

    3A power control with EXIT button

    Voltage range input regularly from AC 110V - 240V 50~60Hz DC output: Stabilizator DC12V/ 3AControls electric lock directlyPower: 36WOutput Stability: 0.5% TypicalOperating Temperature: -20C~65CAdjustable Locking Delay: 0~15secMaterial: acrylicOutside iron shell dimension:85mm*85 mm*42mm

    Please make sure Live line and Null line connect correctly

    Live line = AC 110V-240VLive line = GND

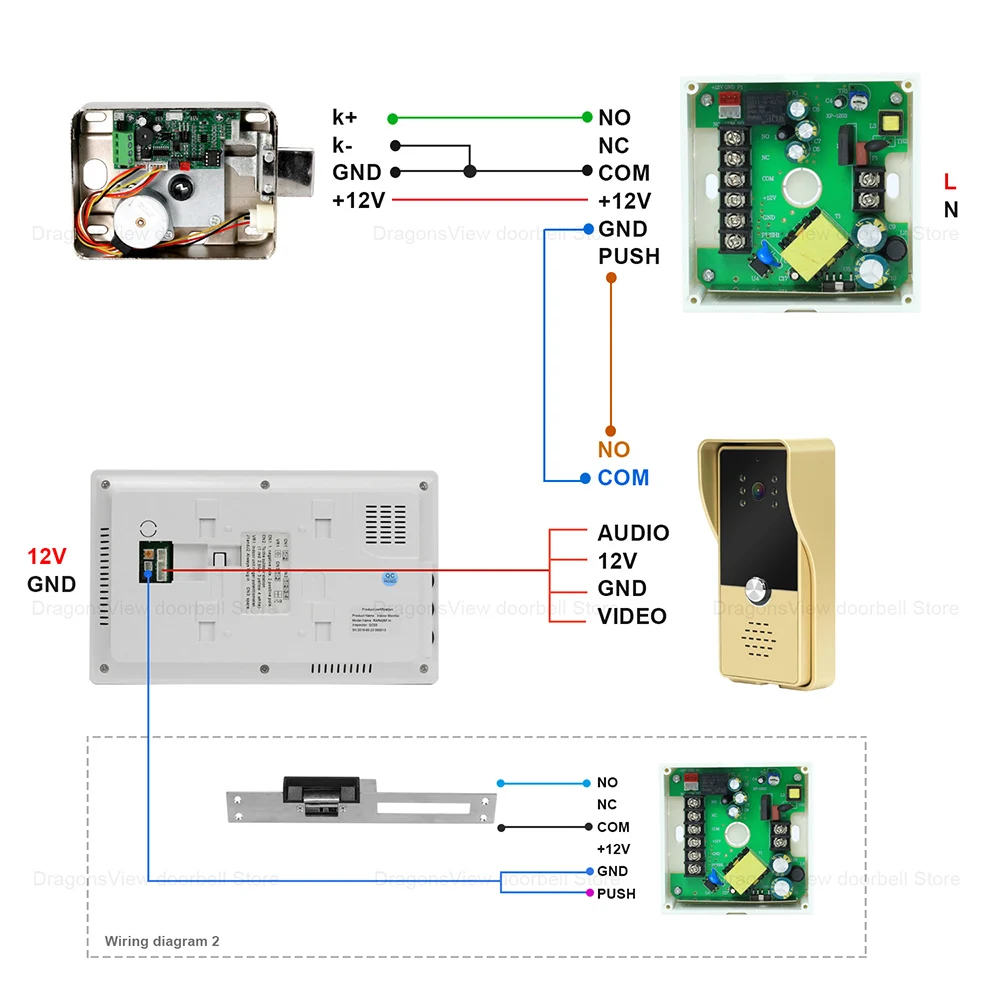

    How to connect wires to 3A power control with EXIT button

    1. this monitor support open 2 locks separately. 1 lock connect to doorbell , 1 lock connect to monitor2.if you need second locks and 3A power control , welcome to contact us

    Please choose what you need

    SET 1 include 1 monitor + 1 doorbellSET 2 include 1 monitor + 1 doorbell + electric lock + 3A power control with EXIT buttonSET 3 include 1 monitor + 1 doorbell + electric lock + remote controller + 3A power control with EXIT button

    Product Details
    Dragonsview Video-Intercom Access-Control-System Wired Call-Panel Door-Phone Electric-Lock

    Top Sale. Clearance Sale

    € 43,44 - 89,91
    4.9
    (based on 176 user reviews)
    Producer: MaJack
    Identifier: 4000190445522
    Volume Retail Sales: MaJack piece
    Availability: 111 pieces
